Steering a Satellite: Attitude
When we hear the word “attitude,” we often think of someone’s perspective or demeanour. However, in the context of space exploration, “attitude” refers to the orientation or position of a satellite in relation to celestial bodies like the Earth, the Sun, or specific stars. Essentially, it’s about knowing which direction the satellite is pointing. This is critical for numerous tasks, such as:
Maintaining communication with Earth.
Generating solar power by aligning with the Sun.
Capturing images or data from specific targets in space.
Let’s explore the systems that manage and control satellite attitude and its role in mission success.
Attitude Ground System (AGS)
An Attitude Ground System (AGS) is operated from Earth-based ground stations and plays a vital role in monitoring and controlling a satellite’s orientation. It works in tandem with the onboard Attitude Control System (ACS) to ensure the satellite maintains the correct orientation throughout its mission.
The AGS performs several functions:
Communicating with the satellite in real time.
Notifying the satellite of necessary attitude adjustments.
Receiving and analyzing telemetry data from onboard attitude sensors.
Using tools like trackers, telescopes, and radar systems, the AGS monitors and coordinates the satellite’s orientation during operations. It is also essential for correcting any deviations in orientation caused by external disturbances, such as solar winds or gravitational forces.
Actuators: These adjust the satellite’s orientation, such as:

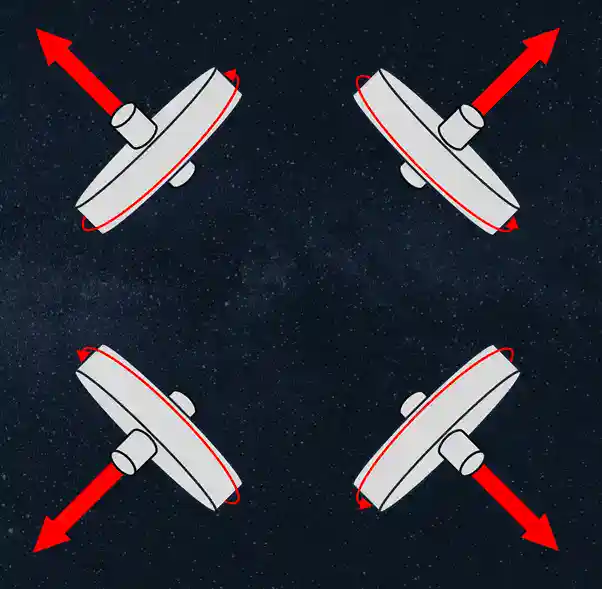

Reaction Wheels
Principle: Adjusts satellite orientation by spinning wheels to generate torque.
Feature/Constraint: Offers precise control, but the system can wear out after prolonged use or high-speed operation.
Thrusters
Principle: Uses bursts of propellant to change satellite orientation.
Feature/Constraint: Effective for large adjustments but consumes fuel and lacks the precision of other systems.
Magnetorquers
Principle: Uses the Earth’s magnetic field to create torque for orientation adjustments.
Feature/Constraint: Power-efficient but less effective in areas with weaker magnetic fields, such as deep space.

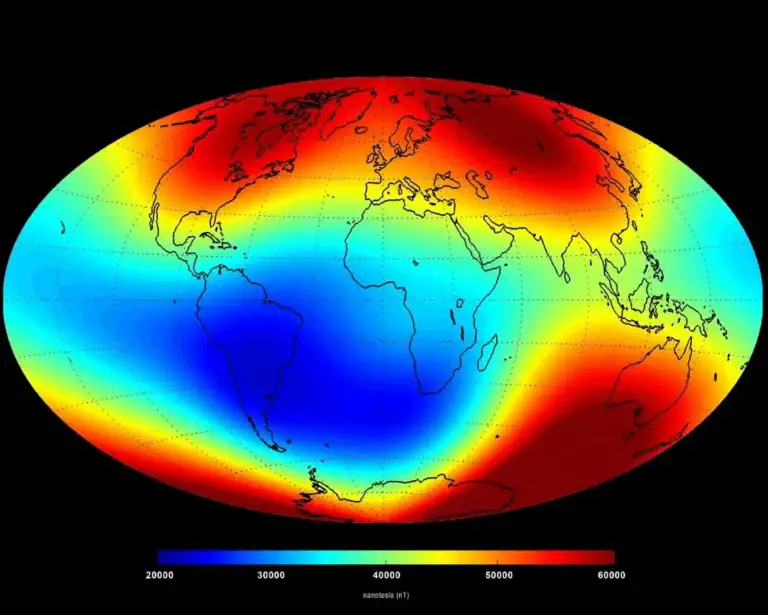

However, one additional challenge arises from the fact that the magnetic field around Earth is not constant in value or orientation. As the Earth’s magnetic field is constantly changing due to solar winds and other space weather phenomena, the firmware of the attitude control system (ACS) may need to be updated regularly with the latest magnetic field models to ensure precise and accurate orientation control. Without these updates, errors in positioning could arise, as the satellite’s magnetorquers rely on this data for orientation adjustments.
By combining sensor data with actuators, the ACS ensures the satellite remains correctly oriented even when external forces, such as atmospheric drag, solar radiation, or variations in the Earth’s magnetic field, to disturb its position.
Guidance, Navigation, and Control (GNC)
The Guidance, Navigation, and Control (GNC) system is essential for controlling a satellite’s movement and maintaining its orientation. These three interconnected functions ensure precise trajectory, position, and orientation during space missions:
Guidance
Guidance determines the satellite’s path and calculates the maneuvers needed to achieve mission goals, such as reaching an orbit, docking with another vehicle, or conducting observations.
There are two main types of guidance:
Open-Loop Guidance:
Follows a predefined path based on initial conditions (e.g., starting position and velocity).
Does not account for adjustments during the mission.
Typically used in stable environments with minimal disturbances.
Closed-Loop Guidance:
Continuously monitors the satellite’s position, velocity, and orientation using real-time sensor feedback.
Makes precise corrections as needed to stay on course.
Ideal for complex missions requiring high accuracy, such as orbital insertion or docking.
Navigation
Navigation involves determining the satellite’s position, velocity, and orientation using advanced sensors like:
Inertial Measurement Units (IMUs): Measure acceleration and rotation.
Star trackers and Sun sensors: Provide positional accuracy using celestial references.
GPS and ground tracking stations: Track the satellite’s location in real time.
By continuously analyzing this data, the navigation system ensures the satellite remains on its intended trajectory.
Control
The control function adjusts the satellite’s trajectory and orientation based on navigation data. Using devices like thrusters, reaction wheels, and Control Moment Gyroscopes (CMGs), the control system ensures the satellite responds to commands and environmental changes.
Feedback loops, such as Proportional-Integral-Derivative (PID) controllers, enable the system to make fine adjustments, ensuring smooth and precise operation.
Why Attitude Matters
The ability to maintain and control a satellite’s attitude is critical to mission success. Whether it’s pointing antennas for uninterrupted communication, aligning solar panels for power generation, or capturing data with high accuracy, attitude control systems ensure the satellite achieves its objectives in the vast and unpredictable environment of space.
Understanding and managing attitude through systems like AGS, ACS, and GNC not only keeps satellites functional but also unlocks new possibilities for exploration, science, and technology.
Published on 17/01/2025, Written by: Cyriaque Guillot, Veronika-Karen Mbaha Lunakind
Attitude Control System (ACS)
The Attitude Control System (ACS) is responsible for determining and maintaining the desired orientation of a satellite. This orientation is defined by the satellite’s mission, such as pointing antennas toward Earth for communication or aligning scientific instruments to study celestial objects.
Key components of the ACS include:
Sensors: These detect the satellite’s orientation and include:
Star Trackers
Principle: Uses the position of stars to determine satellite orientation.
Feature/Constraint: Provides high accuracy but can be affected by bright light sources like the Sun or Earth’s atmosphere.
Gyroscopes
Principle: Measures angular velocity to track changes in orientation.
Feature/Constraint: Accurate for short-term measurements, but prone to drift over time, requiring correction.
Sun Sensors
Principle: Tracks the Sun’s position to estimate satellite orientation.
Feature/Constraint: Effective when in sunlight but not functional in Earth’s shadow.
Magnetometers
Principle: Measures the Earth’s magnetic field to estimate orientation.
Feature/Constraint: Sensitive to fluctuations in the magnetic field; firmware updates are often needed to keep it accurate.
